NK4L Warm Lite

CHAMPION DOOR NK4 Warm Lite is 2-ply fold-up door. Owing to its rigid 120 mm frame construction it is excellent in locations requiring middle-sized exterior doors.

NK4L Warm Lite is a 2-ply fold-up partition like NK2L Double Lite, except that two additional insulation layers for heat and noise insulation have been attached. NK4L Warm Lite's warm value (U) s 0.71 W / (m2 * K) and even 0.57 W/(m2•K) with extra additional insulation.

Owing to their ingenious technology, the Lite models are extremely reliable even in severe operating conditions and their service needs are minimal. Lite doors are also very safe; motors are equipped with built-in brakes and the side guide tracks with fall arresters.

Fabric is polyester weave reinforced PVC fabric and it is fire-, mildew-, UV- and fire-resistant. Intrusion-proof fabric also available. Lite-door's leaf thickness is 120 mm, maximum door width 8 m and height 12 m.

With multiple doors, the width can be unlimited, thanks to the Champion Door elevating support post system.

References

Colour charts:

Serge Ferrari colour chart
Scantarp fabric colour chart
You can select the most suitable door colour from the colour chart. Thanks to modern fabric attachment techniques, several differently coloured fabrics can be combined in the same door. Special colours are also available by order. Please note that due to limitations in on-screen colour reproduction, the actual colour may vary from those shown on your computer monitor.

NK4L Warm Lite - technical information

General information

  • CE-marked
  • Meets requirements of EN 13241-1
  • Wind load: any windload
  • Door size (single leaf door): max. width 8 m, max. height 12 m
  • Door leaf thickness: 120 mm


Fabric

  • Mildew- and UV-resistant
  • Weight 900 g/m²
  • Equipped with thermal insulation
  • Tear strength: 50 / 50 daN
  • Tensile strength: 420 /420 daN / 5 cm
  • Heat and frost resistance +70 to -40 °C
  • Best functionality to -35 °C, arctic fabric to -60 °C
  • Fabric options: windows, Translucent, arctic, soundproofing, extra thermal insulation, security burglar protection

Other materials and surface treatments

  • Upper console - hot-dip galvanized steel
  • Side guides - anodized aluminium profile
  • Lower (bottom) beam - hot-dip galvanized steel
  • Horizontal beams - aluminium
  • Other parts - aluminium, nylon, galvanized and stainless steel

Electrical system

  • Enclosure class: IP54
  • Operating voltage: 3x230/400 V 50 Hz
  • Control voltage: 24 V
  • Control from control panel with 3-button switch
  • Motor rating: 1 to 5 kW/motor
  • Motors are equipped with built-in brakes
  • Torsion: from 250 Nm to 4800 Nm/motor

Maximum door size

Lite-door's leaf thickness is 120 mm, maximum door width 8 m and height 12 m.

U-value (door leaf)

0.71 W / (m² * K), even 0.57 W/(m²•K) with additional insulation

Sound level
25 dB ->

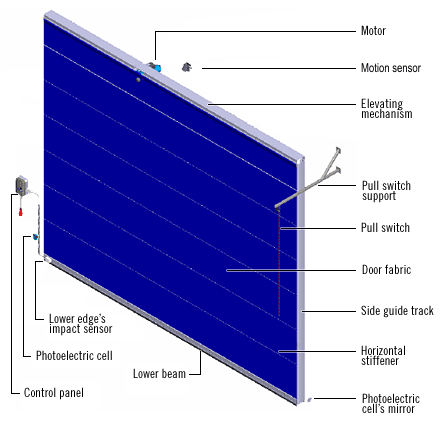

rakenne warm eng
